Roll forming systems for
Diagonal Uprights for pallets (bracing)
Technical sheet:
| Thickness | up to 2,5 mm |
| Production speed | up to 20 m/min |
| Setup time | approx. 10 min |
| Flexible roll forming technology | Interchangeable, Twin |
Roll Forming Lines for Pallet Rack Bracing: Efficient and Custom Production
Gasparini roll forming lines for pallet rack bracing (diagonal braces) produce steel C profiles with thicknesses up to 2.5 mm, speeds up to 20 m/min, and precise tolerances on punching positions.
The available systems — PRO (production changeover in 1 hour) and TWIN (production changeover in 10 minutes) — ensure manufacturing flexibility across different dimensional ranges, in full compliance with pallet racking standards.
Pallet rack bracing (diagonal braces) are structural components designed to ensure the stability of industrial racking systems. Gasparini roll forming lines enable the production of metal profiles with integrated punching and cutting processes.
Technical data sheet for roll forming lines for Pallet Rack Bracing
| Feature | Specifications |
|---|---|
| Product | Diagonals/bracings for pallet racking systems |

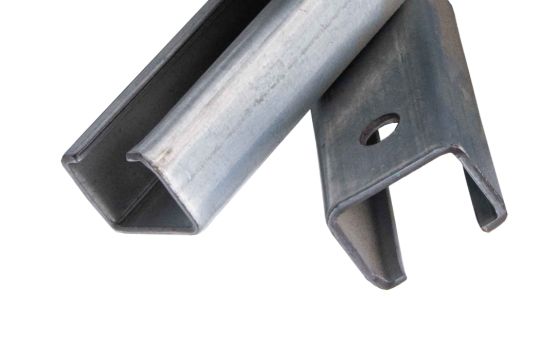

| Profile section | Steel C-profile |
| Hole positional tolerances | ±0.5 mm |
| Materials | Structural steels, hot-dip galvanized steels |
| PRO system – production changeover | Approx. 1 hour |
| Integrated process | Coil feeding → Punching → Cold roll forming → Cutting |
| Industry 4.0 integration | Bidirectional interface with customer's MES |

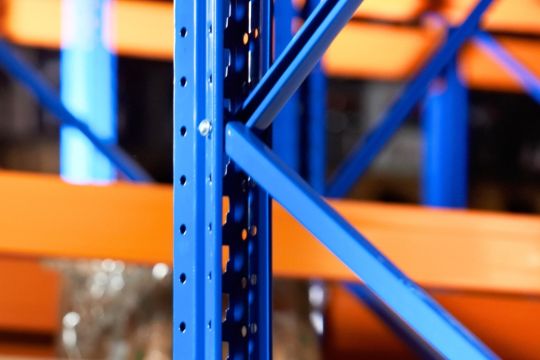

What Is Pallet Rack Bracing?

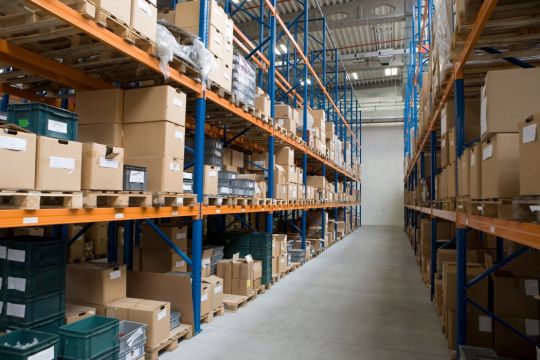

Diagonal braces, also known as bracing members, are essential structural components of industrial pallet racking systems.
Main Structural Function
- Ensure lateral stability and prevent structural overturning.
• Evenly distribute transverse loads.
• Improve the overall strength of the rack structure.
Processable Thicknesses and Materials
Gasparini roll forming machines for pallet rack bracing process steel strip with thicknesses up to 2.5 mm, covering the full range of materials typically used in the production of industrial pallet racking systems:
- Structural steels
- Hot-dip galvanized steels
Production Flexibility: PRO and TWIN Systems
Gasparini offers two plant configurations for the production of diagonal braces, differentiated according to production changeover frequency and the required dimensional variety:
PRO Roll Forming System
- Production changeover in approximately 1 hour
- Ideal for production environments with a limited number of products or large batch sizes
- The optimal solution when dimensional variety is limited
TWIN Roll Forming System
- Production changeover in approximately 10 minutes
- Designed for manufacturers producing profiles with different dimensions and frequent changeovers
- Minimizes machine downtime and maximizes operational flexibility, dramatically reducing setup costs
The choice between the PRO system and the TWIN system depends on the profile dimensions to be produced and the customer’s manufacturing strategy. The Gasparini technical team supports customers in analyzing their production mix to identify the most efficient solution.

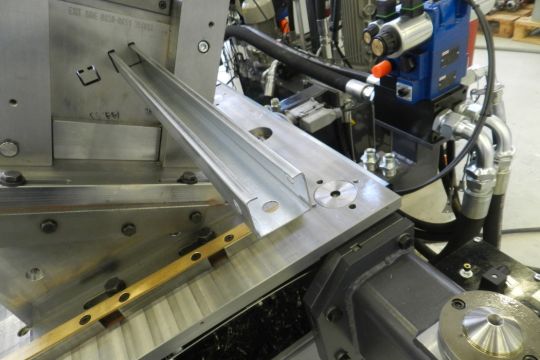

The Production Process: Roll Forming, Punching and Cutting
The line integrates all production stages in sequence to obtain a finished component ready for assembly:
- Strip feeding — the coil is uncoiled and straightened before entering the roll forming station.
- Punching — holes for connection to uprights are produced inline with strict positional tolerances, a critical factor to ensure component interchangeability and correct load transfer.
- Cold roll forming — a series of roll forming stations with shaped rollers progressively bends the strip until the final section is achieved (C profile).
- Cutting — the profile is cut to the programmed length, delivering diagonal braces ready for use without further processing.
Production speed reaches up to 20 m/min, enabling high output volumes with efficient manufacturing cycles. Gasparini designs custom roll forming lines for pallet racking components.
Machine Flexibility for Different Sections
Gasparini roll forming machines for pallet rack bracing can be designed for:
- Production of multiple dimensions on the same line
- Electronic adjustment with tolerances of ±0.5 mm
- Integration with CAD software for custom design requirements
Industry 4.0 Integration
The integration between the roll forming line for uprights and the customer’s MES enables the machine to receive production orders directly from the company ERP system while returning recorded process parameters for each production batch. This ensures full material traceability and keeps production synchronized with the customer’s factory workflow.
Contact Gasparini S.p.A. for a roll forming line for pallet rack bracing (diagonal braces) optimized for your production line.
